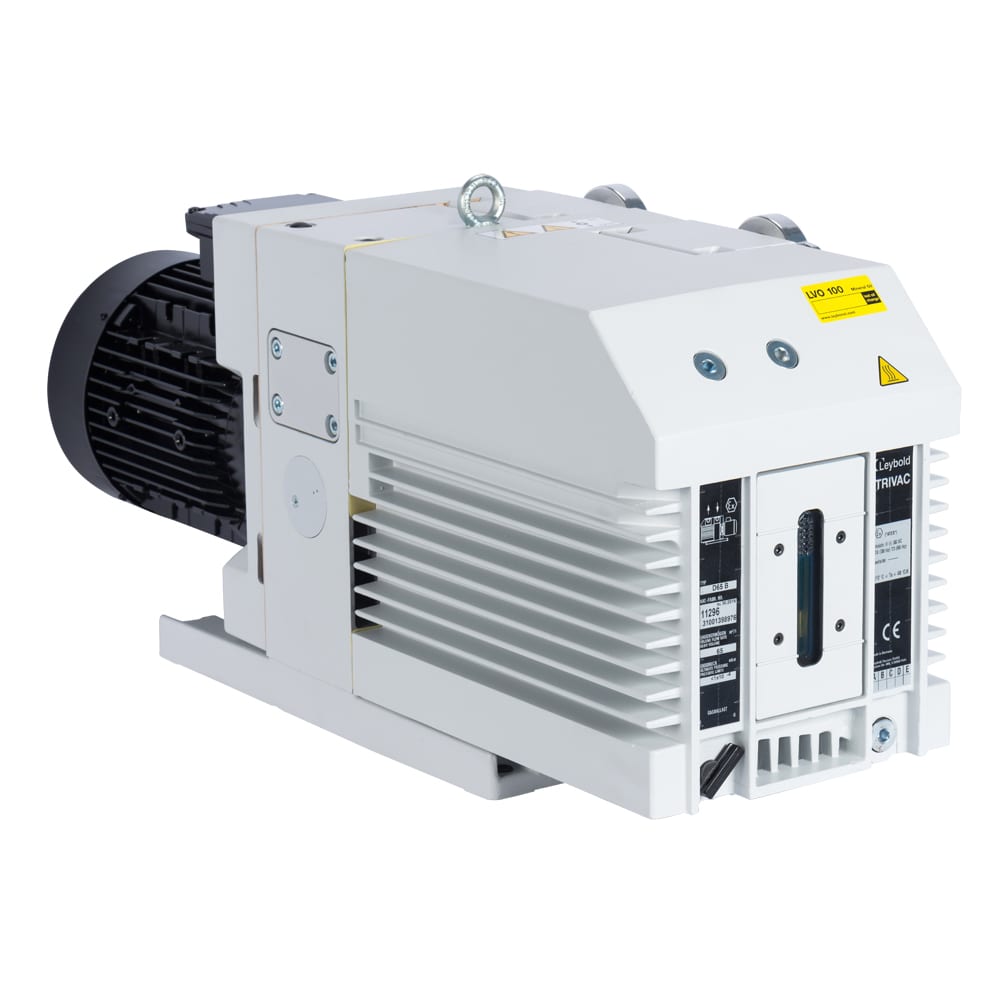

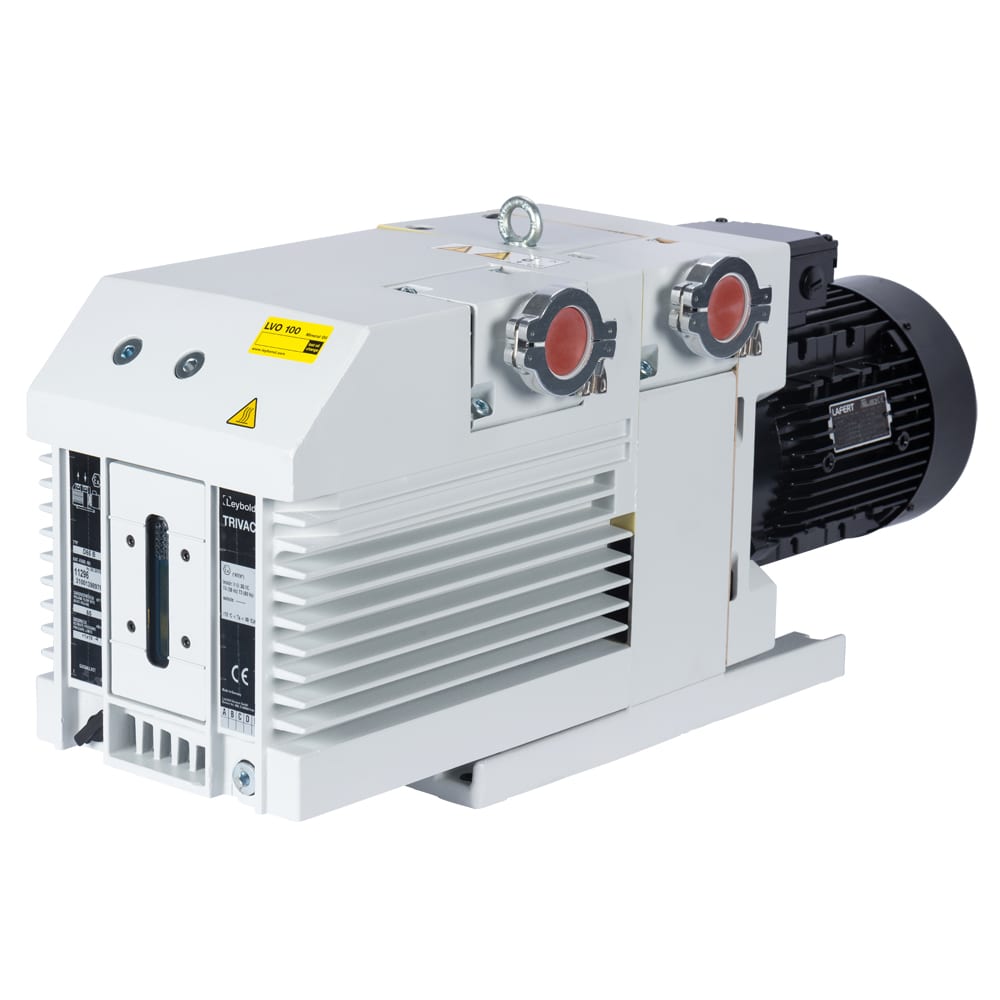

TRIVAC D 65 B
| Part number: | 11296 |
| Motor: | 3-ph, 230/400 V, 50/60 Hz |
| Pumping speed (50 Hz): | 65 m³/h |
| Pumping speed (60 Hz): | 78 m³/h |
| Ultimate pressure: | 2 x 10⁻³ mbar |
Please login to see prices or request a quote.
- Technical Data (24.30 Kb)
- Technical Data (23.69 Kb)
- CAD (.stp) (363.74 Kb)
- CAD (.stp) (340.53 Kb)
- Spare parts list (1.17 Mb)
- Product brochure (3.28 Mb)
- Product brochure filters (1.35 Mb)
- Product Overview (9.83 Mb)
- Declaration of contamination (HS1) (531.93 Kb)
- Declaration of contamination (HS2) (602.15 Kb)
- Declaração de Contaminação (HS1) (499.44 Kb)
- Declaração de Contaminação (HS2) (617.88 Kb)
- Fundamentals of Vacuum Technology (5.01 Mb)
- Product catalogue (14.04 Mb)
- Service catalogue (1.71 Mb)
